This portable unit uses hydrogen peroxide vapor as a broad-spectrum antimicrobial, and is one of the most versatile pharmaceutical-grade biodecontamination machines for isolators, small enclosures, and cleanrooms

_x000D_

_x000D_

_x000D_

_x000D_

_x000D_

_x000D_

Features

_x000D_

_x000D_
_x000D_

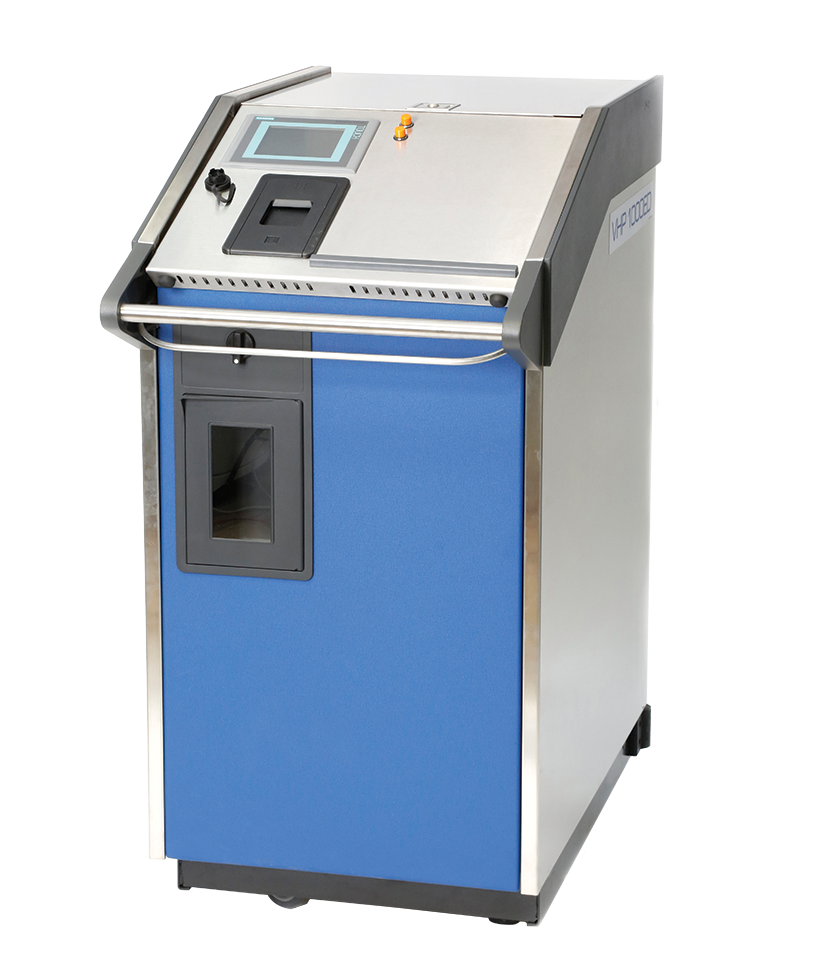

STERIS’ VHP ® 1000ED provides a safe, environmentally friendly method to decontaminate sealed enclosures up to 10,000ft3._x000D_

HOW THE VHP 1000ED MOBILE BIODECONTAMINATION SYSTEM WORKS

_x000D_

_x000D_

STERIS¢ ¬ ¢ VHP 1000ED Mobile Biodecontamination System utilizes Vaprox ® Sterilant (EPA Reg. No. 58779-4) as a means of achieving dry, low temperature sterilization within large sealed enclosures such as cleanrooms and filling lines. The dry, gaseous process consists of four distinct phases:_x000D_

_x000D_

Dehumidification – Humidity is removed from the room space via an integrated desiccant system. This is done to ensure that a true, dry biodecontamination process is achieved._x000D_

_x000D_

Conditioning – Vaprox is rapidly injected by the generator and converted into a dry vapor that quickly raises the level of hydrogen peroxide to an effective concentration._x000D_

_x000D_

Biodecontamination – Hydrogen peroxide vapor concentrations are maintained at the target concentration level to provide an effective kill of micro-organisms in the room space._x000D_

_x000D_

Aeration – The generator stops injecting Vaprox and accelerates the breakdown of vapor into its environmentally friendly base elements of water vapor and oxygen._x000D_

_x000D_

Aeration continues until hydrogen peroxide is reduced to an acceptable level and the room is commissioned for regular use._x000D_

WHY VHP 1000ED MOBILE BIODECONTAMINATION SYSTEMS?

_x000D_

_x000D_

• Productivity – Decontaminates sealed enclosures up to 10,000ft3 such as isolators, small enclosures and rooms.

_x000D_

• Easy to Validate – GAMP Compliant unit is portable, accurate, reliable, and convenient to use.

_x000D_

• Flexibility ¢ ¬ Mobile unit can be placed inside or outside of the enclosure.

_x000D_

• Efficacy – The gaseous decontamination process is effective against a wide variety of microorganisms and has a broad range of material compatibility.

_x000D_

• Green – Provides a non-toxic and environmentally friendly alternative to other decontamination processes. Vaporized Hydrogen Peroxide breaks down to water vapor and Oxygen.
