- Fast and homogeneous transfer of proteins
- Maximum transfer efficiency
- Easy and fast setup
Catalogue No.
Supplier
|
Catalogue No.
| Rapid Semi-Dry Transfer | ||
|---|---|---|

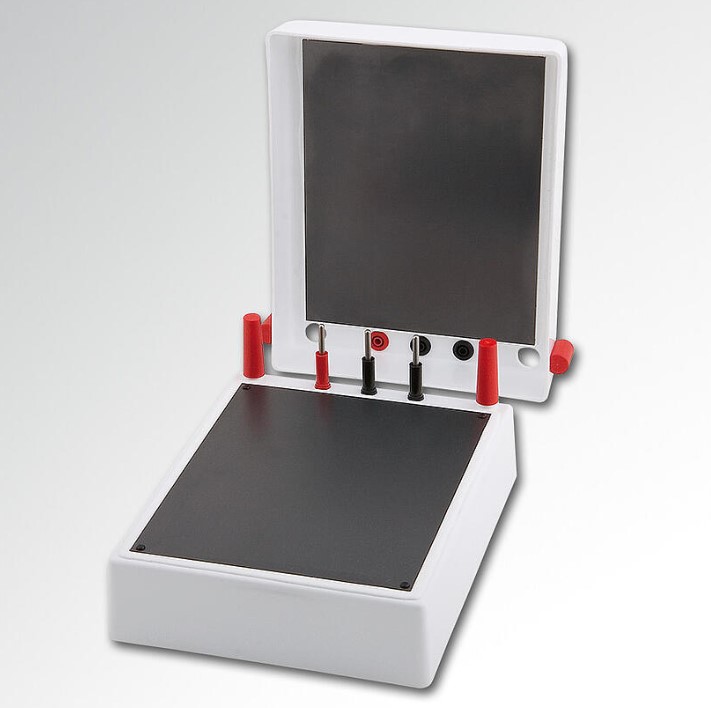

| Fastblot B43 | Fastblot B44 | |
| Electrode | Cathode: Stainless steel Anode: Platinum-coated titanium |
Cathode: Stainless steel Anode: Platinum-coated titanium |
| Transfer time | 10 – 30 min | 10 – 30 min |
| Capacity of device | 2 mini gels or 1 midi gel | 2 mini gels or 1 midi gel |
| Blotting area (W x D) | 16.0 x 20.0 cm | 16.0 x 20.0 cm |
| Transfer buffer requirement | < 200 ml | < 200 ml |
| Cooling option | Yes | No |
| Max. flow rate | 0.5 – 1 l/min | – |
| Dimensions (W x D x H) | 26.0 x 22.0 x 11.0 cm | 24.0 x 22.0 x 11.0 cm |
| Electrode distance | Determined by sandwich thickness | Determined by sandwich thickness |
| Max. Voltage | 50 V | 50 V |
| Max. Current | 5 mA/cm² | 5 mA/cm² |
| Max. Power | 10 W (30 W for 30 min when cooled to 12 °C) |
10 W (20 W for 30 min) |
| Max. Operation Temperature | 50 °C | 50 °C |
| Weight | 2.5 kg | 2.5 kg |
| Power supply | P25/P25T | P25/P25T |
